Torque Analyser

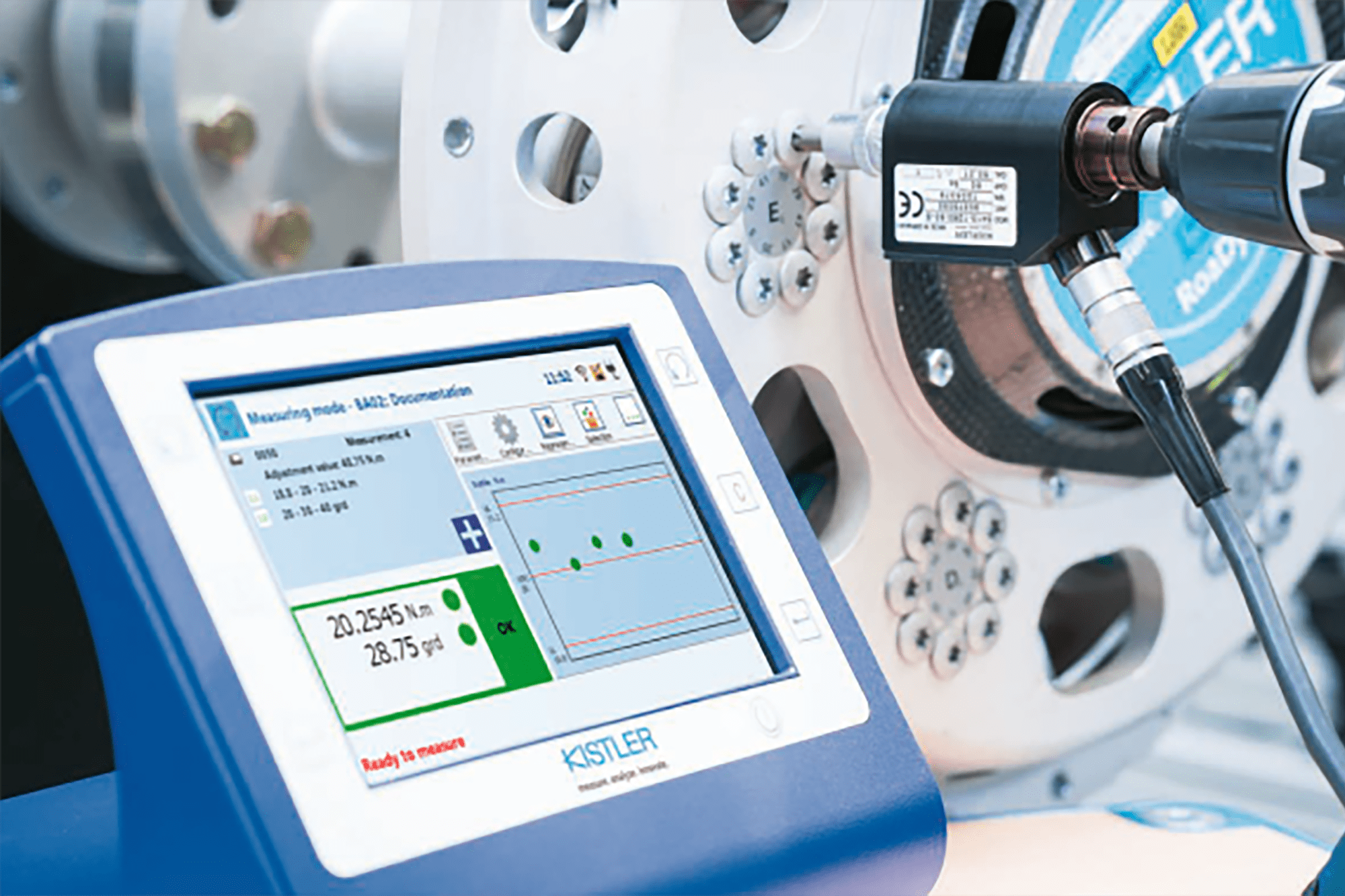

Kistler INSPECTpro
Mobile measuring and evaluation unit for process inspection and quality monitoring
The INSPECTpro is a portable, battery-powered measuring and evaluation unit for recording analog and incremental measurands. The (random-sample) tests can be performed, analyzed and documented quickly and effectively and thereby contribute to optimum quality in bolted joint assembly and a variety of other applications. Optional software modules expand the INSPECTpro to create an individual, custom testing system.
- Portable and lithium-ion battery-operated
- 7.7-inch TFT color display and Touchscreen
- Connectivity for a range of sensors (with optional adapter cable, depending on type)
- Optional two measuring channels: Analog / incremental sensor
- Optional software modules for extended function
- Optional connection of external power supply for Continuous operation
Kistler Torque Sensor / Transducer
The torque sensors operate according to the strain gauge principle and supply a passive analog signal in mV/V. The torque sensor with integrated angle of rotation measurement are optionally available as torque/angle of rotation sensors.
The torque sensors with rotating measuring shaft are particularly suitable for dynamically determining torques during fastening processes of bolted joints.
- Measuring range of 0.2 Nm to 5000 Nm (according to type)
- SCHATZ AUTOCODE identification
- Standardized mechanical connections; square and hex (1/4 inch)
- Suitable for pulse tools (depending on type)
